立式玻璃钢容器参数表
公称容积 (m3) | 计算容积 (m3) | 罐体尺寸 | 顶盖矢高 | 入孔直径 | 出料口 | 厚度 | 约计重量 | |
D | H | |||||||
5 | 5.63 | 1600 | 2800 | 250 | 450 | 50 | 18 | 557 |
10 | 10.05 | 2000 | 3200 | 300 | 450 | 50 | 20 | 892 |
15 | 15.2 | 2200 | 4000 | 350 | 500 | 50 | 20 | 1200 |
20 | 20.8 | 2400 | 4600 | 400 | 500 | 80 | 20 | 1469 |
25 | 25.48 | 2600 | 4800 | 450 | 500 | 80 | 25 | 2108 |
30 | 30.78 | 2800 | 5000 | 480 | 500 | 80 | 28 | 2663 |
50 | 49.48 | 3000 | 7000 | 500 | 500 | 100 | 35 | 4830 |
65 | 65.02 | 3000 | 9200 | 500 | 500 | 100 | 40 | 6939 |

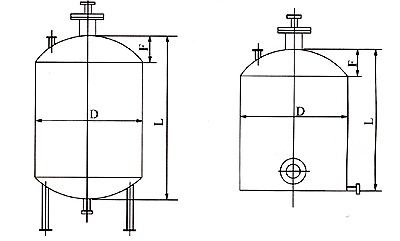

立式容器参数表
m3\L\D | 400 | 600 | 800 | 1000 | 1200 | 1400 | 1500 | 1000 | 1800 | 2000 | 2200 |
0.1 | 850 | 430 |
|
|
|
|
|
|
|
|
|
0.2 | 1650 | 780 | 490 |
|
|
|
|
|
|
|
|
0.5 |
| 1840 | 1090 | 740 |
|
|
|
|
|
|
|
1 |
|
| 2080 | 1380 |
|
|
|
|
|
|
|
2 |
|
|
| 2650 | 1890 | 1440 |
|
|
|
|
|
3 |
|
|
|
| 2780 | 2090 | 1850 |
|
|
|
|
4 |
|
|
|
| 3660 | 2740 | 2410 | 2150 |
|
|
|
5 |
|
|
|
|
| 3390 | 2980 | 2650 |
|
|
|
6 |
|
|
|
|
|
| 3550 | 3140 |
|
|
|
7 |
|
|
|
|
|
|
| 3640 | 2930 |
|
|
8 |
|
|
|
|
|
|
| 4140 | 3320 |
|
|
9 |
|
|
|
|
|
|
| 4630 | 3710 | 3060 |
|
10 |
|
|
|
|
|
|
| 5130 | 4100 | 3370 |
|
11 |
|
|
|
|
|
|
| 5630 | 4500 | 3690 | 3100 |
12 |
|
|
|
|
|
|
|
| 4890 | 4010 | 3370 |
15 |
|
|
|
|
|
|
|
| 6070 | 4970 | 4150 |
18 |
|
|
|
|
|
|
|
| 7250 | 5920 | 4940 |
20 |
|
|
|
|
|
|
|
| 8030 | 6560 | 5470 |
25 |
|
|
|
|
|
|
|
|
| 8150 | 6790 |
30 |
|
|
|
|
|
|
|
|
|
| 8100 |
| m3\L\D | 2400 | 2500 | 2600 | 2800 | 3000 | 3200 | 3400 | 3500 | 3600 | 3800 | 4000 |
30 | 6860 | 6340 | 5890 | 5130 | 4530 | 4030 | 3620 |
|
|
|
|
35 | 7960 | 7360 | 6830 | 5940 | 5240 | 4650 | 4170 | 3960 | 3770 |
|
|
40 | 9070 | 8380 | 7780 | 6750 | 5940 | 5280 | 4720 | 4480 | 4260 | 3880 |
|
45 |
| 9400 | 8720 | 7570 | 6650 | 5900 | 5270 | 5000 | 4760 | 4320 |
|
50 |
|
| 9660 | 8380 | 7360 | 6520 | 5830 | 5520 | 5250 | 4760 | 4350 |
55 |
|
|
| 9190 | 8070 | 7140 | 6380 | 6040 | 5740 | 5200 | 4750 |
60 |
|
|
| 10000 | 8770 | 7760 | 6930 | 6560 | 6230 | 5640 | 5140 |
65 |
|
|
|
| 9480 | 8380 | 7480 | 7080 | 6720 | 6080 | 5540 |
70 |
|
|
|
| 10190 | 9010 | 8030 | 7600 | 7210 | 6520 | 5940 |
75 |
|
|
|
|
| 9630 | 8580 | 8120 | 7700 | 6960 | 6340 |
80 |
|
|
|
|
| 10250 | 9130 | 8640 | 8190 | 7410 | 6730 |
85 |
|
|
|
|
|
| 9680 | 9160 | 8690 | 7850 | 7130 |
90 |
|
|
|
|
|
| 10230 | 9680 | 9180 | 8290 | 7530 |
95 |
|
|
|
|
|
|
| 10200 | 9670 | 8730 | 7930 |
100 |
|
|
|
|
|
|
|
| 10160 | 9170 | 8330 |
110 |
|
|
|
|
|
|
|
|
| 10050 | 9120 |
120 |
|
|
|
|
|
|
|
|
|
| 9920 |
130 |
|
|
|
|
|
|
|
|
|
| 10710 |
140 |
|
|
|
|
|
|
|
|
|
| 11510 |
150 |
|
|
|
|
|
|
|
|
|
| 12310 |
